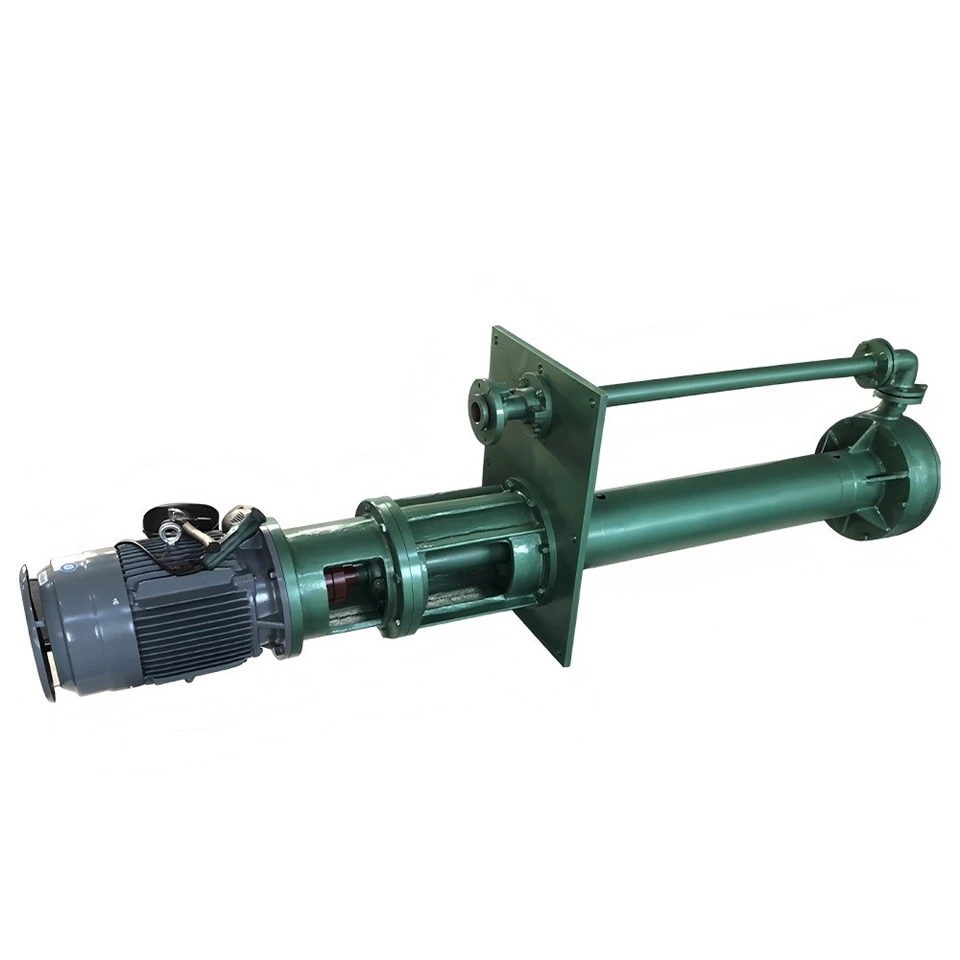

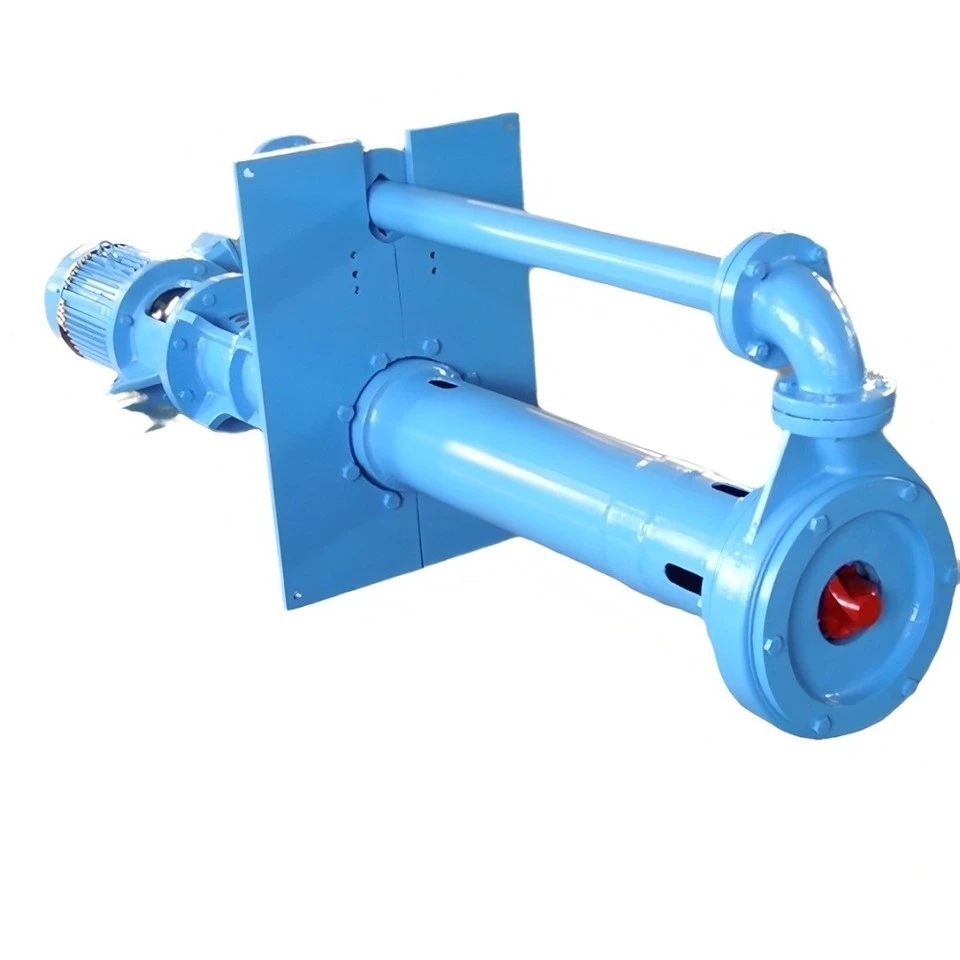

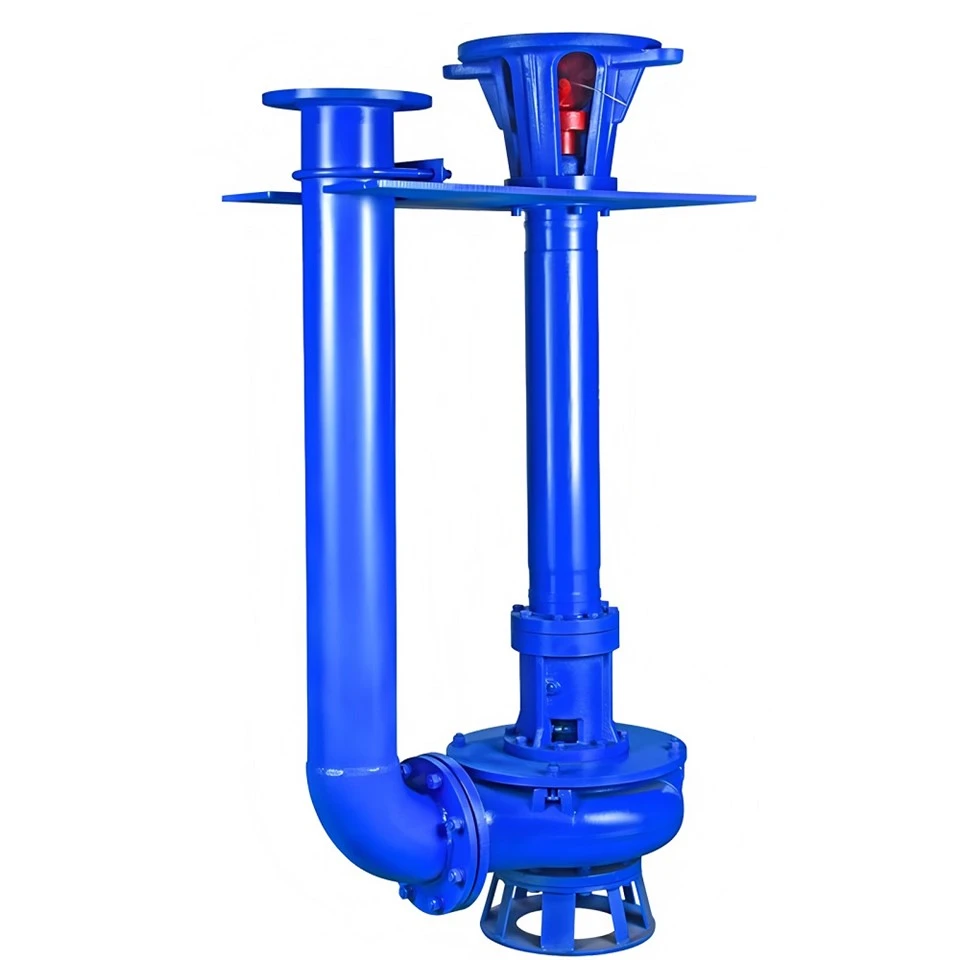

Vertical Slurry Pump
Vertical Slurry Pump is a single stage, single suction, semi-submerged pump with semi-open imepller. and no bearing between the impeller and casing, aim to deliver medium with big solids, with typical immersion legth from 800mm to 1900mm. The tempreture not allowed above 80℃,better below 75℃. Sizes from 50mm to 100m.
In the aerated concrete industry, Vertical Slurry Pump is a commonly used for the transportation and application of mortar in the production of aerated concrete blocks or panels. These pumps are designed to handle the specific requirements of aerated concrete, which is a lightweight and porous material. Here are some key considerations for vertical mortar pumps used in the aerated concrete industry:
► Pump Design: Vertical Slurry Pump designed for the aerated concrete industry typically have a compact and robust design. They are often equipped with a vertical shaft and impeller arrangement, allowing for efficient pumping of the mortar.
► Material Compatibility: The wetted parts of the pump, including the impeller and casing, should be made of materials that are compatible with the properties of the mortar used in aerated concrete production. Common materials for the wetted parts include abrasion-resistant alloys or special coatings to withstand the abrasive nature of the mortar.
► Mixing Capability: Some Vertical Slurry Pump in the aerated concrete industry may incorporate a mixing mechanism to ensure proper homogeneity of the mortar during pumping. This helps maintain the desired consistency and quality of the aerated concrete.
► Pumping Efficiency: Vertical Slurry Pump used in the aerated concrete industry should be designed for efficient pumping of the mortar, taking into account the desired flow rate, pressure requirements, and consistency of the material. The pump should be capable of delivering the mortar accurately and consistently to the desired locations in the production process.
► Ease of Maintenance: pay attention to the tempreture of the bearing, should not abbove 75℃, Fill grease to insure the pump work safely; check coupling regularly, stop operation wehrn there are big noises. check pump parts each 2000 hours. adjust the space between impeller and casing not less than 2.5mm. if out of this range please change impeller , front cover and casing.
Products Description
Flow Q: 5～1400m3/h
Lift H: 5～80m
Submerged length L: 200～8000mm
Products Features
► This vertical slurry pump is installed on a liquid bath or tank so that it does not cause any leakage and can be used for a long time.
►The vertical design enables installation in a small space.
►The externally tank-installation type is also available.
Products Structure
Products Applications
It is suitable for transporting corrosive liquids containing solid particles and easy to deposit, the maximum weight concentration is 60-70%, and the temperature is -20-200°C. It is widely used in iron and steel, electric power, phosphorus chemical industry, smelting, chemical industry, sugar production, environmental protection, Transportation of media under different working conditions in fields such as pits, tanks, pools and tanks in mining, papermaking and other industries, such as sewage, ore pulp and ore pulp slag mixing.
Suitable for conveying corrosive liquids containing solid particles and easy to deposit
The maximum weight concentration is 60-70%, the temperature is -20～200℃
Transportation of media in different working conditions in a wide range of application fields
Corrosive liquids
Transfer of liquids from pit-tanks.
Circulation, Stirring, Pressurized transfer
Too high-temperature liquids to be self-primied
Waste water transfer, Sewage wastewater treatment
Hazardous liquids if leaked from the seal
