Tank Bottom Flush Valve

 Tank Bottom Flush Valve

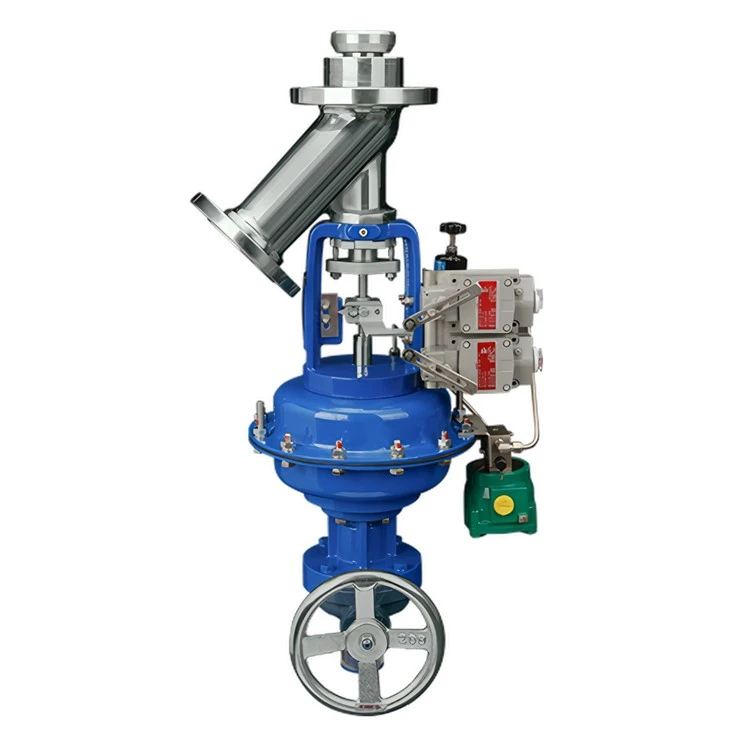

Engineers around the world know tank bottom flush valve by their application, construction, and control. Known as bottom valve when used at the bottom of the reactor to flush out the medium, known as actuated control when the operation of tank bottom flush valve is automated with actuators, lined flush bottom valve when lined or coated with an anti-corrosive coating, sampling valves are flush bottom valves used for sampling. Visit our product page to view the whole range of tank bottom flush valve.
We can offer you customized tank bottom flush valve as per your quality and quantity. Hongar is an expert in manufacturing flush bottom valves. Every valve is customised as per customers' requirements. Customisation flush bottom valves, which deliver reliable performance are the hallmark of Hongar valves.

A tank bottom flush valve is designed to ensure that the fluid is flushed out smoothly, and the valve is closed without dead space.
There are two types of tank bottom flush valve. A rising disc type, which opens when the disc goes up and a lowering disc type, which opens when the disc goes down.


- Application for Tank Draining

- Minimize remains by insertion nozzle into tank

- Actualize suitable draining speed according as customer demands

- Tank buttom flush valve is Upper type and lower type

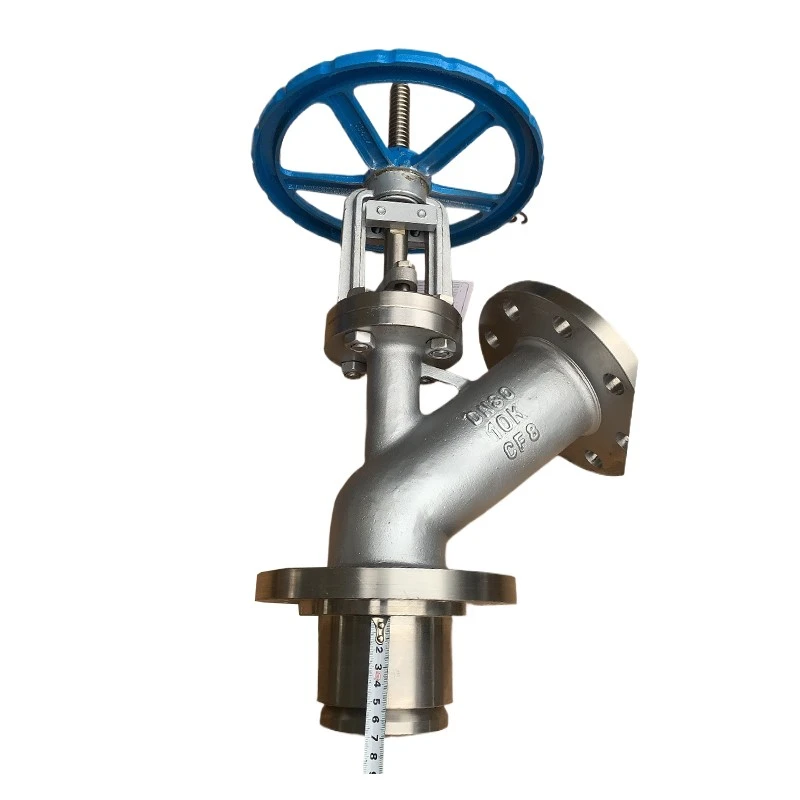

Functioning of Y Type tank bottom flush valve
The parts of the flush bottom valve are identical to that of a globe valve and the closing and opening actions are also similar. The shut off is achieved by disk closing against the body seat. The disks in closed position match with the bottom of the vessel or piping leaving no room for hold up or stagnation.
Normally, the inlet size of a standard flush bottom valve is one size higher than that of the outlet size. There are special constructions possible with both sizes same.The outlet port is at an angle to the inlet port. Normally 45 or 60 degrees deviation is provided.

Modular construction design.
All trim components are replaceable from the top for easy maintenance.
Wide range of supplementary cavitation &noise control option Inherently characterized trim offered in equal percentage, linear, quick opening and modified parabolic. Multi trim sizes are available.
Full range of body and trim material options.
Full range of bonnet and packing designs to suit various temperatures and fluids.
