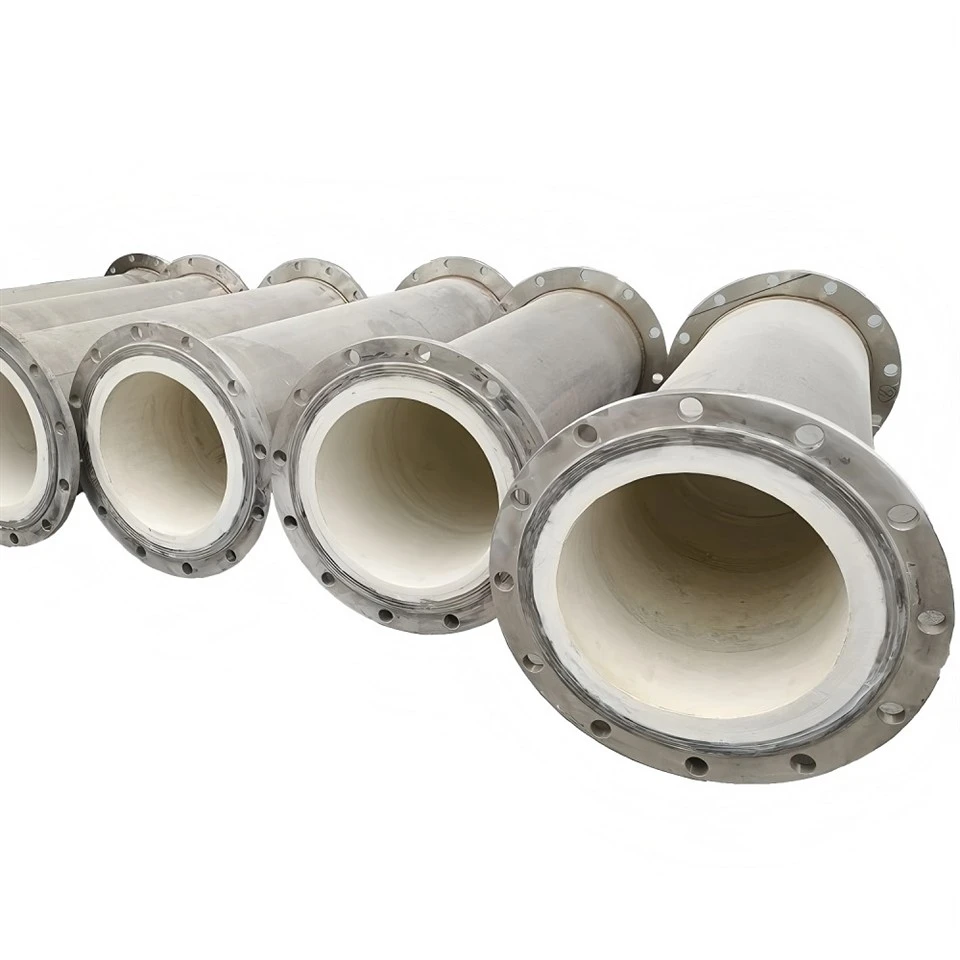

Ceramic Lined Pipe
Ceramic Lined Pipe is a seamless, monolithic lined pipe designed to provide maximum abrasion resistance in the most challenging environments.
The Ceramic Lined Pipe consist of a layer of engineered alumina ceramic material applied to the inside wear surfaces of the pipe, which is then spun cast or troweled in place. The result is a singular liner with no seams or tiles. After curing, the liner retains a hardness of between 8 and 9 on the Moh's scale, yielding one of the best wear solutions for the most erosive applications.
Our Ceramic Lined Pipe has been engineered to provide unparalleled wear resistance in corrosive and high-temperature environments. The chemical composition and seamless application limit the effects of corrosion in many applications. The high-temperature capabilities and excellent thermal shock resistance can provide exceptional abrasion resistance that no other material can match in environments up to 2200° F.
The combination of corrosion resistance and high-temperature capabilities provides unquestionable advantages over the most common pipe materials such as basalt, rubber, polyurethane, steel, cast iron, or ceramic tile.
Products Description
Size: DN50-DN400
Pressure: PN25 Max.
Ceramic material: Aluminum Oxide, Zirconium Oxide etc.
Jacket Material：WCB, CF8, CF8M, CF3M, Hastelloy, Monel, Alloy 20, Titanium
Lining Material：ZrO2 Ceramics, Al2O3 Ceramics, Tungsten Carbide, Si3N4, SSiC
End Connection：Flange End, Butt Welding End, EN1092-1, DIN 2501, ASME B16.5
Wall Thickness: 2-60mm
Ceramic Lined Pipe all dimensions can be customized, normally our ceramic lined fittings is the best choice equipment used for both corrosive and abrasive severe service.
Surface:Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, FBE, Varnish coating, Bitumen coating, Black Oil coating etc.
Products Advantage
Win-Ceramic Advantage
1. Good wear resistance
Because the ceramic lined pipe is corundum ceramic (a-AL2O3) and its Mohs hardness can reach 9.0, it has high wear resistance to abrasive media conveyed by metallurgy, electric power, mining, coal, and other industries.
2. Low running resistance
According to the inspection of relevant departments, the smoothness of the inner surface of the ceramic lined pipe is better than that of any metal pipe, the cleaning resistance coefficient is 0.0193, the running resistance is small, and the running cost can be reduced.
3. Good temperature resistance and heat resistance
Because wear-resistant ceramic is a single and stable crystalline structure, the ceramic lined pipe can operate normally in the t
Products Application Field

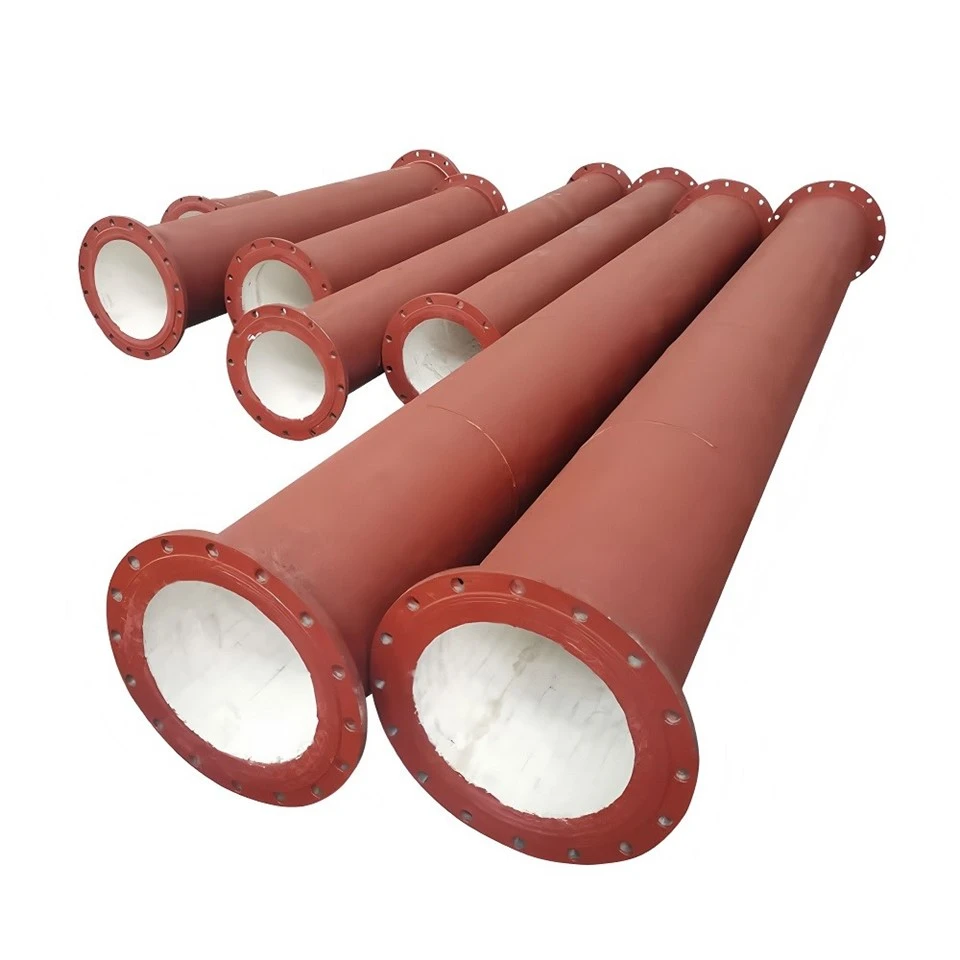

The ceramic lined pipe is widely used in power, metallurgy, cement, chemical, coal, steel, and other industries because it organically combines the high hardness, high wear resistance, and corrosion resistance of ceramics with the machinability, weldability, and high strength of steel, and has the advantages of high wear resistance, lightweight, convenient processing, and flexible on-site installation. The service life of ceramic sleeve lining pipe is 8-10 times longer than that of cast stone pipe and wear-resistant alloy steel pipe, and 15-20 times longer than that of steel-plastic pipe and steel rubber pipe.
Products Packaging
There are probably hundreds of different methods for packing an abrasion resistant pipe and Elbows, and most of them have merit, but there are two principles that are vital for any method to work prevent rusting and Sea transportation security.
A B C
A,I-beam frame packaging for ceramic lined elbows
B,Ceramic lined bends are packed with channel steel cases
C,Straight pipes are packed with I-bream frame
