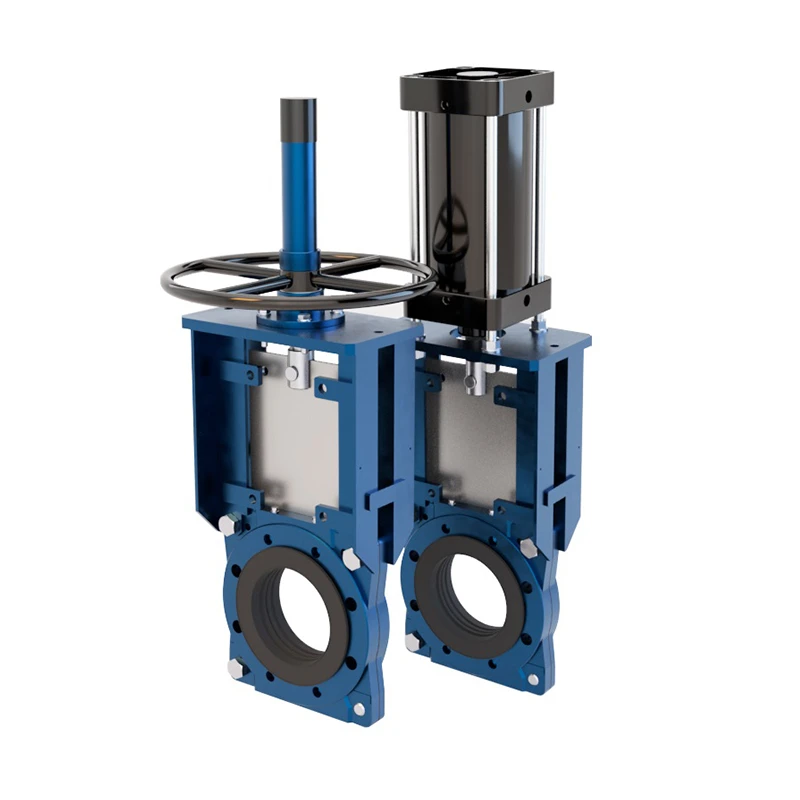

The Wafer Knife Gate Valve is a compact and versatile valve designed for reliable performance in industrial applications. Its wafer-style design allows for easy installation between flanges, saving space and reducing weight. With a robust knife gate mechanism, this valve effectively controls the flow of fluids containing solids or slurries. It's a go-to choice for industries requiring efficient shut-off capabilities in challenging environments.
Metal Seat Wafer Knife Gate Valves are designed as metal to metal seat for high temperature and rough medium , Ends connections in Wafer. Size ranges from 2'' to 60" diameter, pressures in PN6,PN10,PN16,ANSI#Class 125 & Class 150.A broad body and trim materials are selected and fabricated to suit for various service conditions.
Body Material: WCB, LCB, WC6, WC9, C5, CF3, CF8M, CF3M, etc.：
Seat Material：Metal, NBR, Viton, PTFE
Pressure Ratings:ANSI 150#,PN10,PN16
Size : 2" to 60",50mm to 1500mm (Larger sizes upon request)
Without Bolted Bonnet
Ends Connections: Wafer
Design Standard:MSS SP-81, MSS SP-135, ASME B16.34 etc.
Uni- or Bi-direction
Temperature Range：-29℃~425℃
Actuations: Manual, Pneumatic,Electric, Hydraulic(Counterweight) & Electro-hydraulic
Applications:Pulp and Paper ,Power plants ,Wastewater reatment plants ,Chemical plants ,Food and Beverage
