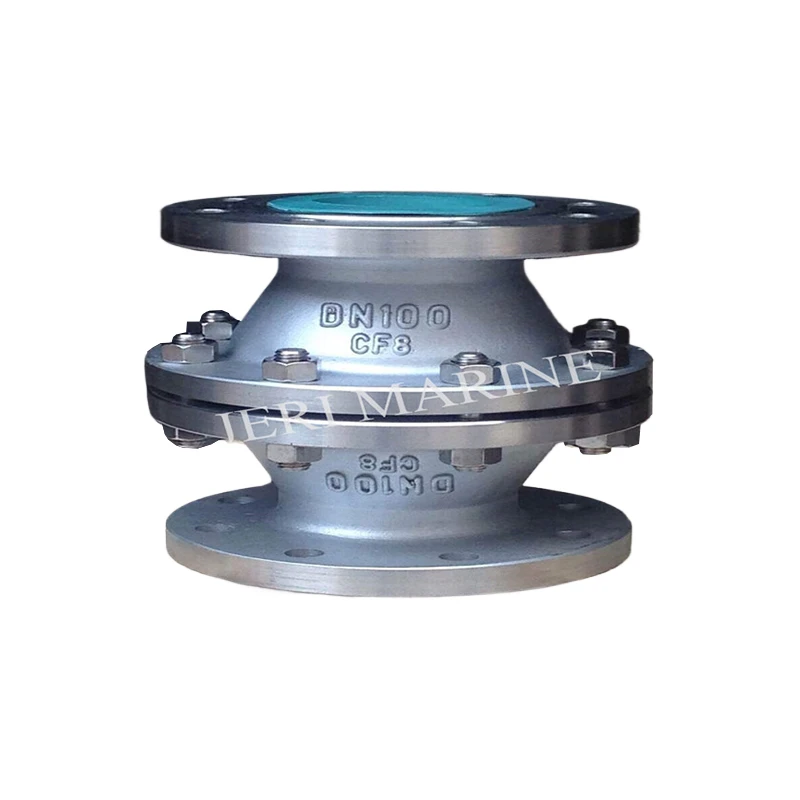

Pipe Line Flame Arrester
The pipe line flame arrester (also spelled flame arrestor or flame arresting), deflagration arrester, or flame trap is a device that stops fuel combustion by extinguishing the flame. It is widely used to prevent flammable gas, liquid flame spread and prevent an explosion caused by tempering. It usually served on delivery or discharge inflammable and explosive gas storage tank and pipeline.
We are the professional manufacturer for all kinds of the storage tank and pipe line fittings, such as the flame arrester, breather valve, filters...... which are suitable for flammable gas storage tank or transport pipeline.
Our products follow the ISO16852 standards for testing and manufacturing, CE certification. Through the national special equipment inspection and Research Institute of the full type test, resistance to fire performance is excellent, to obtain TSG certification.
We have already produced the maximum diameter of the pipe flame arrester 24 inch, product performance was widely recognized petrochemical enterprises. And our products were exported to all over the world.
Specification
|
Model |
PZHQ-B |
Explosion Group |
BS 5501: IIA IIB IIC |
|
Size |
DN15-600 GB81-59 PN0.6-2.5 FF,RF |
Temperature |
CS : -30℃ ~ + 350℃ SS : -80℃ ~ + 480℃ |
|
Body Material |
A3 304 304L 316 316L |
Jonit Type |
Flange / Threaded / Butt Welding |
|
Trim Material |
304 304L 316 316L |
Flanges |
HG GB SH HGJ JB ANSI JIS |
|
Bolt/Nut |
20# 304 304L 316 316L |
Manufacture Inspection |
GB5908-86 SY7511-87 |
|
Diaphragm (P/V) |
NBR PTFE Metal Gasket |
Coating |
CS : Paint SS : natural color |
|
DN (mm) |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
200 |
250 |
|
Inch |
3/4 |
1 |
1 1/2 |
2 |
3 |
4 |
6 |
8 |
10 |
|
Length |
195 |
195 |
220 |
245 |
280 |
325 |
427 |
496 |
593 |
|
Height |
200 |
200 |
240 |
240 |
250 |
260 |
360 |
420 |
430 |
