Product Description ：

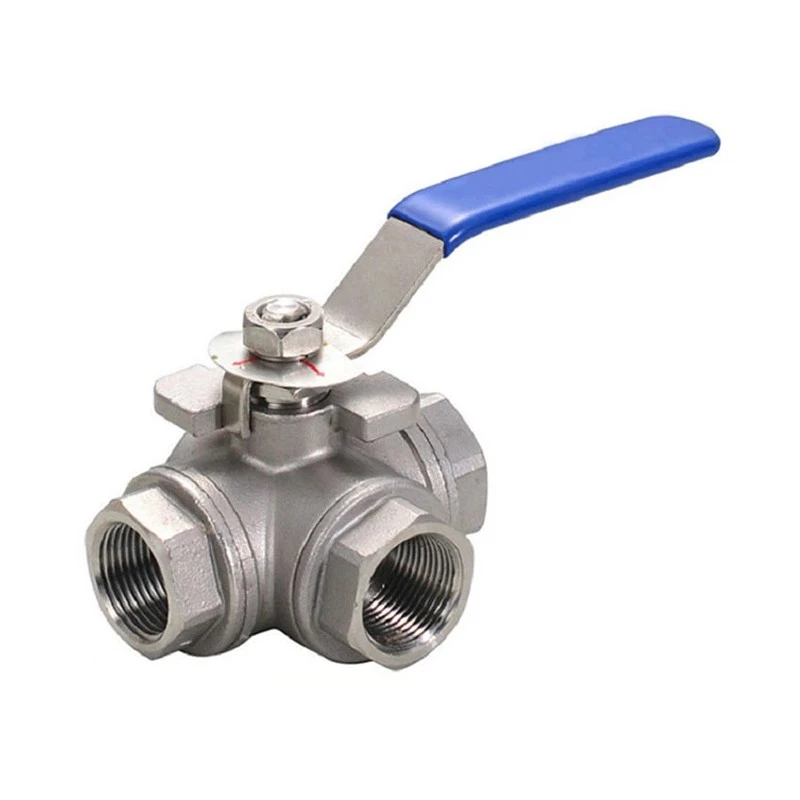

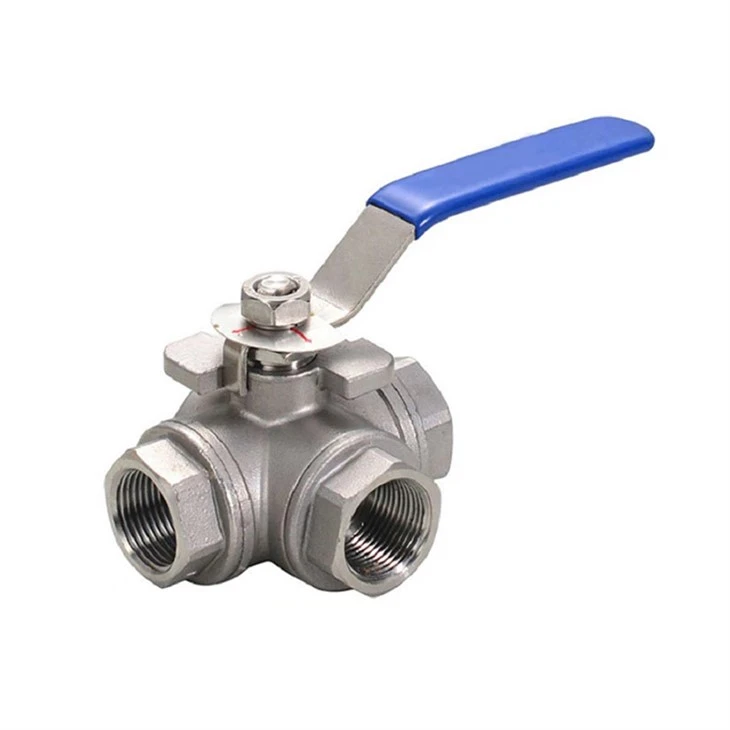

This investment cast Three Way Ball Valve can be an economical option for flow patterns that normally require multiple 2-way valves. Available in L or T port configurations, this valve is excellent for diverting flow within control loop processes.
Three way ball valves are available in T and L shapes.
The T-shape can connect three orthogonal pipelines and cut off the third channel, playing a role of diversion and confluence.
The L three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnectivity of the third pipeline at the same time, only serving as a distribution function.
The disc ball valve and flange gate valve are both classified as valves that utilize a rotating ball around the centerline of the valve body to facilitate opening and closing. These ball valves are primarily utilized in pipelines to control, distribute, and alter the flow direction of the medium.
Model NO.：Q14F-16P
Size：1/4" to 4"
Media：Water
Material：Stainless Steel
Connection Form：Clamped/welded/female
Driving Mode：Manual,
Nominal Pressure：PN16-64.0MPa
Channel：Straight Through .0-32.0MPa
Channel：Straight Through Type：Floating Ball Valve
Function：Blow-Down Valve, Relief Valve
Temperature：Normal TemperatureType
Structure：Floating Ball Valve
Application：Industrial Usage, Water Industrial Usage

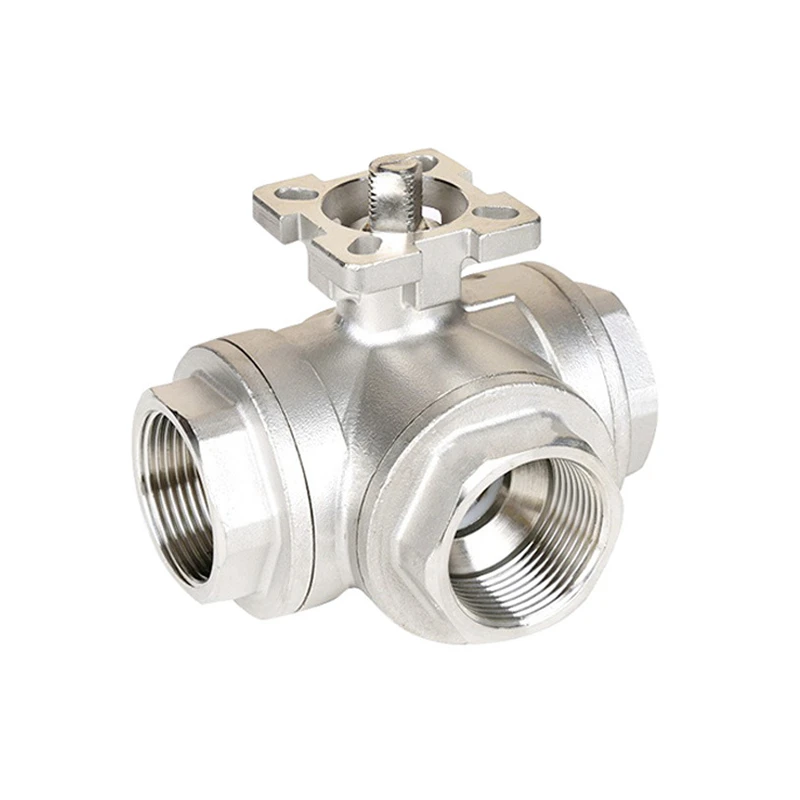

Three way ball valves have 3 ports. They are available in a variety of body materials and with all of the common end connections. They can be manually operated or automated with an electric or pneumatic actuator. They can be used as diverter valves, where flow a single inlet is diverted to either of the two other ports as the outlet. They can also be used as an input selector where a single outlet port is fed the flow from one of the other two ports as the supply inlet. The bore through the ball (ball drilling) comes in two varieties, "L" and "T" as shown below.
Products Details

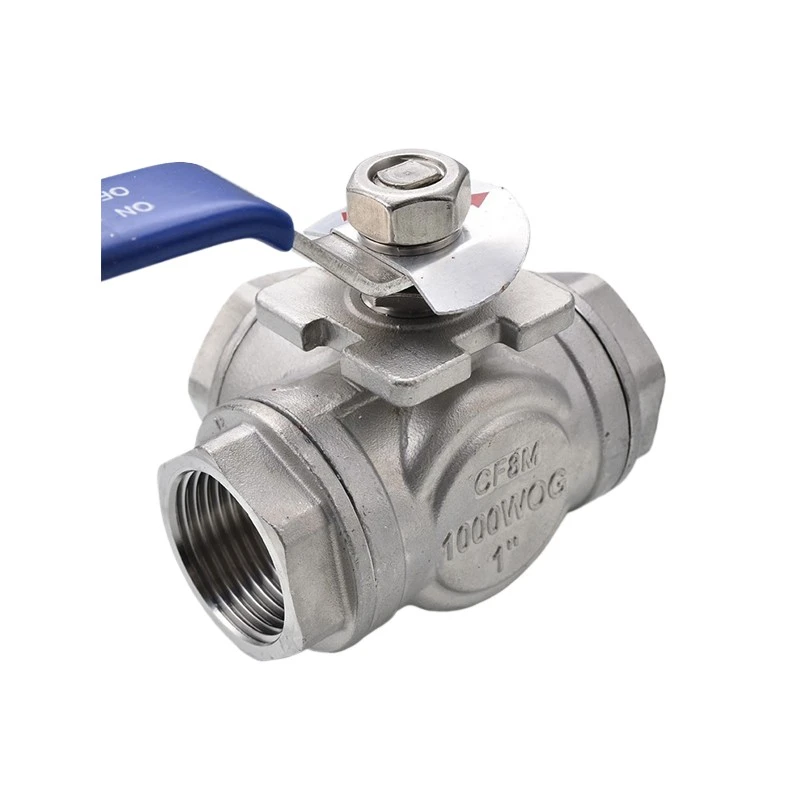

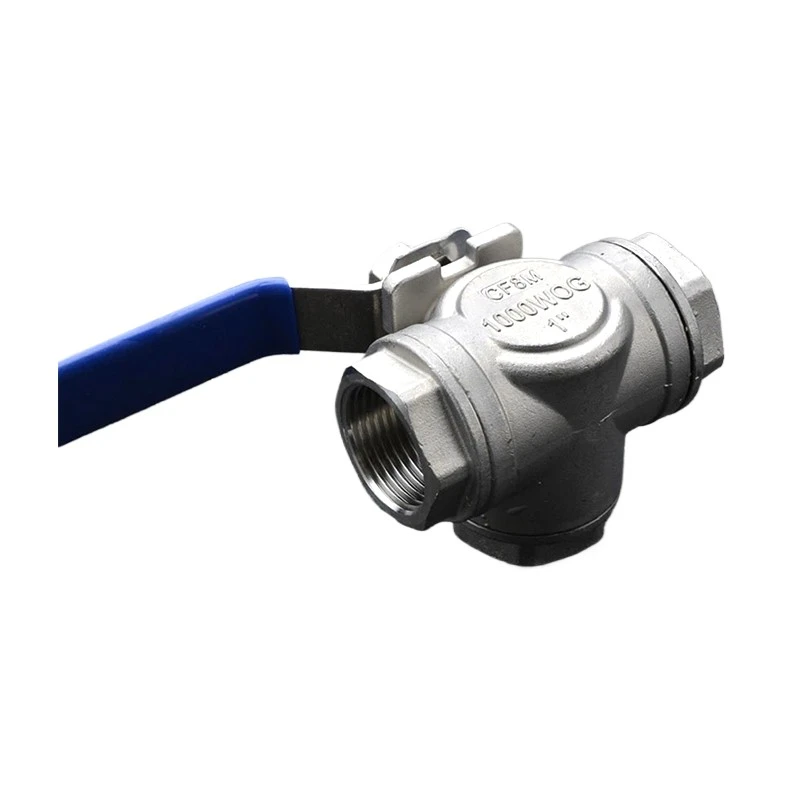

Three Way Ball Valve with PTFE seals & seats by Hongar Stainless steel ball valves with PTFE (Teflon) seats & seals offer excellent corrosion resistance for most applications. Stainless steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols. These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage. All metal pieces of our valves are 304 /316 Stainless steel, including the nuts and other exterior metals.
Product advantages
High Quality Stainless Steel: stainless steel material, rustproof and long service life. High temperature resistance, corrosion resistance, pressure resistance, explosion-proof, durable and rust-free
T-Type Tri-Way Screw Ball Valve: T-type connects 3 straight pipes to block the third channel that acts as diverter and conflict

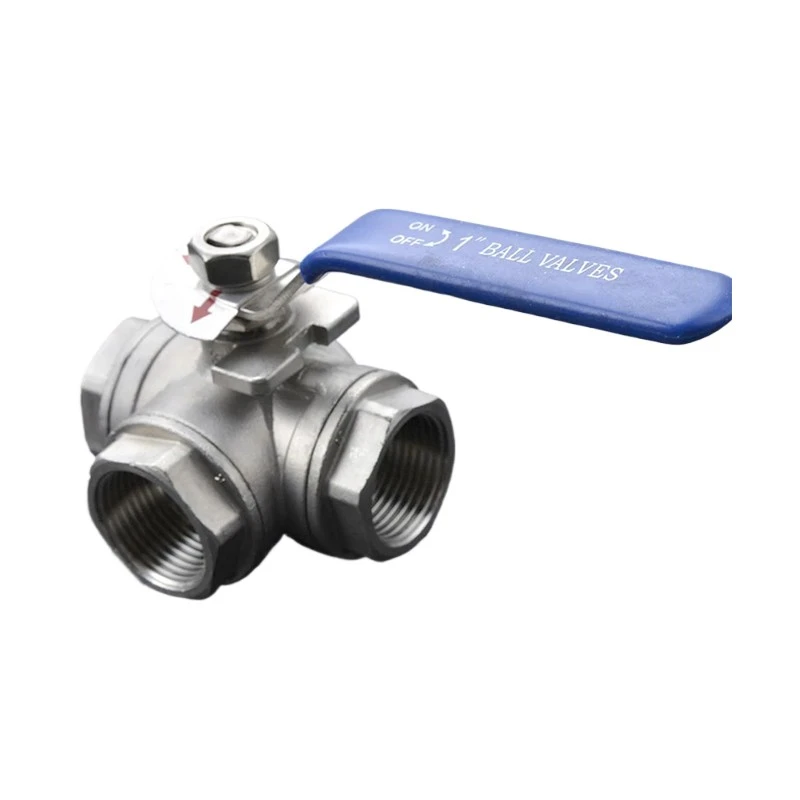

EASY OPERATION: The valve can be opened and closed easily by simply rotating the handle 90 degrees, making it easy to operate and maintain, suitable for a wide range of industrial applications
STRONG SEAL: The valve has good sealing performance, low resistance, and good performance after many cycles. Stainless steel ball valves are suitable for mediums: water, oil, gas and some corrosive liquids
Note: If you need other size stainless steel Three-Way Ball Valve, please feel free to contact us
Products application
Three way ball valve are used in applications with more than one source of media or to divert media in two different directions. Depending on the flow direction, the three ports are assigned as either one outlet and two inlets or one inlet and two outlets.
Three way ball valve have three ports and can be manually operated or automated with an electric or pneumatic actuator. The bore through the ball comes in two varieties: "L" and "T" port. Three way valves can:
►Cut off or shut off flow
►Switch flow between two different sources
►Combine the flow from two different sources
►Alternate flow between two different destinations
►Divert flow coming from one source to another destination
►Split flow coming from one source between two outgoing destinations
