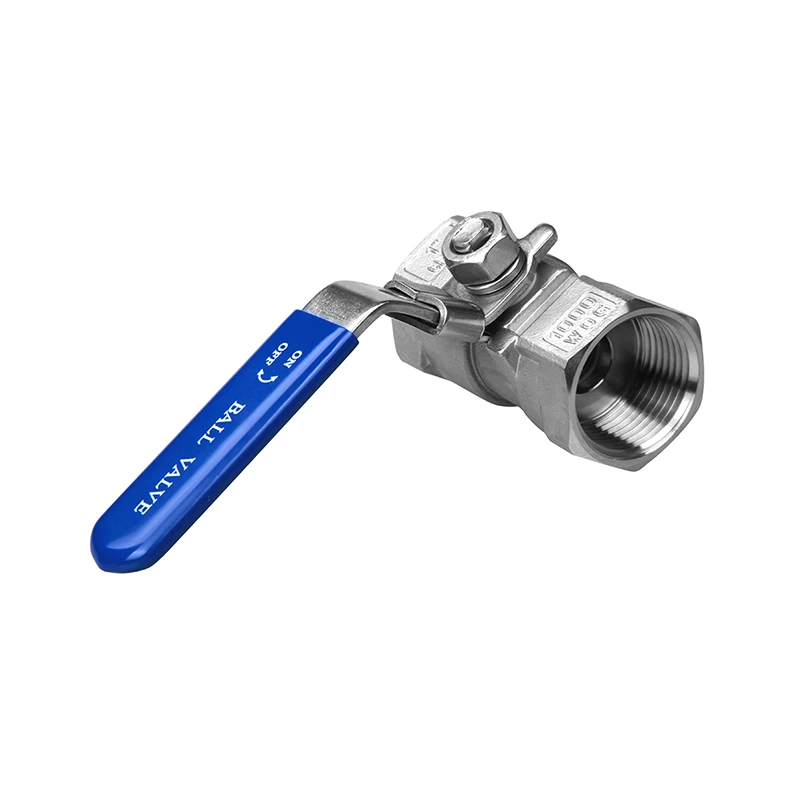

1PC Thread Ball Valve (WCB,CF8,CF8M)
The 1 Piece ball valve as the name suggests is a type of shut off ball valve made out of one single solid body part that houses the internal components which include the ball and seats. This single body design with no body joints ensures fewer potential leaks, which makes it ideal for applications where simplicity and reliability are important. The simple design also have the added advantage of making the valve compact, robust and low cost. As a result of the smaller compact valve body, one piece ball valves have a smaller ball leading to a reduced bore, more commonly called a reduced port. This means that flow is reduced through the valve, since the ball bore has an internal diameter one size smaller than the pipe size. They require minimal maintenance since they are not intended to be disassembled or easily repaired, However they can be taken apart for cleaning and servicing by unthreading the internal seat retainer end plug that has a hexagonal opening to make it easier to screw on and off with a Allen wrench or hex key.
1. Nominal pressure: PN1.0～32.0MPa
2. Nominal diameter: DN10～65, NPS 3/8'' ～2 1/2''
3. Connection method: ISO7/1
4. Drive mode: manual, worm gear, pneumatic, electric, hydraulic, etc.
Product Description
|
Design standards |
|
|
Technical specification: |
GB |
|
Design standard: |
GB/T 12237 |
|
Face to face: |
GB/T 12221 |
|
Theaded ends: |
ISO7/1 |
|
Test and inspection: |
JB 9092 |
|
Specifications |
|
|
Nominal pressure: |
1.6 / 2.5 / 4.0 / 6.3 Mpa |
|
Strength test: |
PT2.4 / 3.75 / 6.0 / 9.45 Mpa |
|
Seal test: |
1.76 / 2.75 / 4.4 / 6.93 Mpa |
|
The seal test: |
1.76 / 2.75 / 4.4 / 6.93 Mpa |
|
Gas seal test: |
0.6Mpa |
|
Valve body material: |
WCB(C) / CF8 (P) / CF8M (R) |
|
Suitable medium： |
water / steam / oil products / nitric acid / acetic acid |
|
Suitable temperature: |
-29℃-180℃ |
|
Materials of main parts |
||
|
No. |
Part name |
Material |
|
1 |
Nut |
304/316 |
|
2 |
Spring washer |
304/316 |
|
3 |
Handle |
304/316 |
|
4 |
Gland nut |
304/316 |
|
5 |
Packing |
PTFE |
|
6 |
Thrust gasket |
PTFE |
|
7 |
Stem |
304/316 |
|
8 |
On seat |
PTFE |
|
9 |
Body |
WCB/CF8/CF8M |
|
10 |
Lock nut |
304/316 |
|
11 |
Washer |
304/316 |
|
12 |
Ball |
304/316 |
|
13 |
Next seat |
PTFE |
|
The main dimensions and connection dimensions |
||||||||||||
|
|
1/4'' |
3/8'' |
1/2'' |
3/4'' |
1'' |
1¼'' |
1½'' |
2'' |
2½'' |
3'' |
4'' |
|
|
d |
5 |
7 |
9 |
12 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
|
|
L |
50 |
44 |
54 |
59 |
71 |
78 |
84 |
101 |
110 |
133 |
185 |
|
|
H |
32 |
32 |
40 |
40 |
45 |
55 |
55 |
65 |
95 |
100 |
130 |
|
|
W |
72 |
72 |
95 |
100 |
115 |
125 |
125 |
140 |
175 |
175 |
235 |
|
|
Weight |
|
|
|
|
|
|
|
|
|
|
|
|
The 1 piece ball valve consists of a single body. This means that the valve cannot be taken apart for cleaning. The advantage is that the valve is inexpensive and robust. Because the valve body is a single piece, a smaller ball must be used, resulting in a reduced orifice, commonly referred to as a reduced bore. This means that the flow through the valve is reduced because the ball bore is one size smaller than the pipe size.
Hongar specializes in designing and manufacturing stainless steel & carbon steel threaded ball valves, floating threaded ball valves, flange end ball valve, Gate valve, Globe valve, check valves and ect. With nearly 20 years of manufacturing experience, we have become one of the leading manufacturers in this field.
Applications：
Petroleum
Chemical industry
Light industry
High voltage equipment
Pharmaceutical
Paper
Other industrial automatic control systems
