Horizontal pipeline pump
ISW/ISWR/ISWH/ISWB Horizontal pipeline pump is an efficient and energy-saving product designed based on the unique structural combination of IS centrifugal pump and vertical pump. It is optimized and designed using the most advanced hydraulic model in China, and is combined with a general horizontal pipeline pump based on its structure. After solving the inherent problem of easy loosening of the coupling, the performance is more stable. At the same time, hot water pumps, high-temperature pumps, chemical pumps, oil pumps, etc. are derived from the ISW type based on different usage temperatures, media, etc.
ISW horizontal inline pump is used for conveying clean water and other liquids with physicochemical properties similar to clean water. It is suitable for industrial and urban water supply, pressurized water supply of high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transmission, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment matching. The service temperature T ≤ 80 ºC.
ISWR horizontal hot water inline pump is widely used in: metallurgy, chemical industry, textile, papermaking, and hotels and restaurants and other boiler hot water pressurized circulating transportation and urban heating systems, ISWR type operating temperature T≤120ºC.
ISWH horizontal chemical inline pump is used to convey corrosive liquids without solid particles and with viscosity similar to water. It is suitable for petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceutical and synthetic fiber departments. The service temperature is – 20 ºC ~ + 120 ºC.
ISWB horizontal inline oil pump, used for conveying gasoline, kerosene, diesel and other oil products or flammable and explosive liquids, and the temperature of the conveyed medium is -20ºC~+120ºC.
Products Description
Material: stainless steel
Flow : 1.1~1800m³/h
Lift: 2.8~150m
Power: 0.12~250kw
Size:DN25~DN500
Speed: 980~2900r/min
Power Specs:AC 220V/240V380/415V 3phase; 50hz/60hz
Casing:Cast iron, Stainless steel
Maximum discharge-side pressure:1.6MPa(16bar)
Temperate: ≤120℃

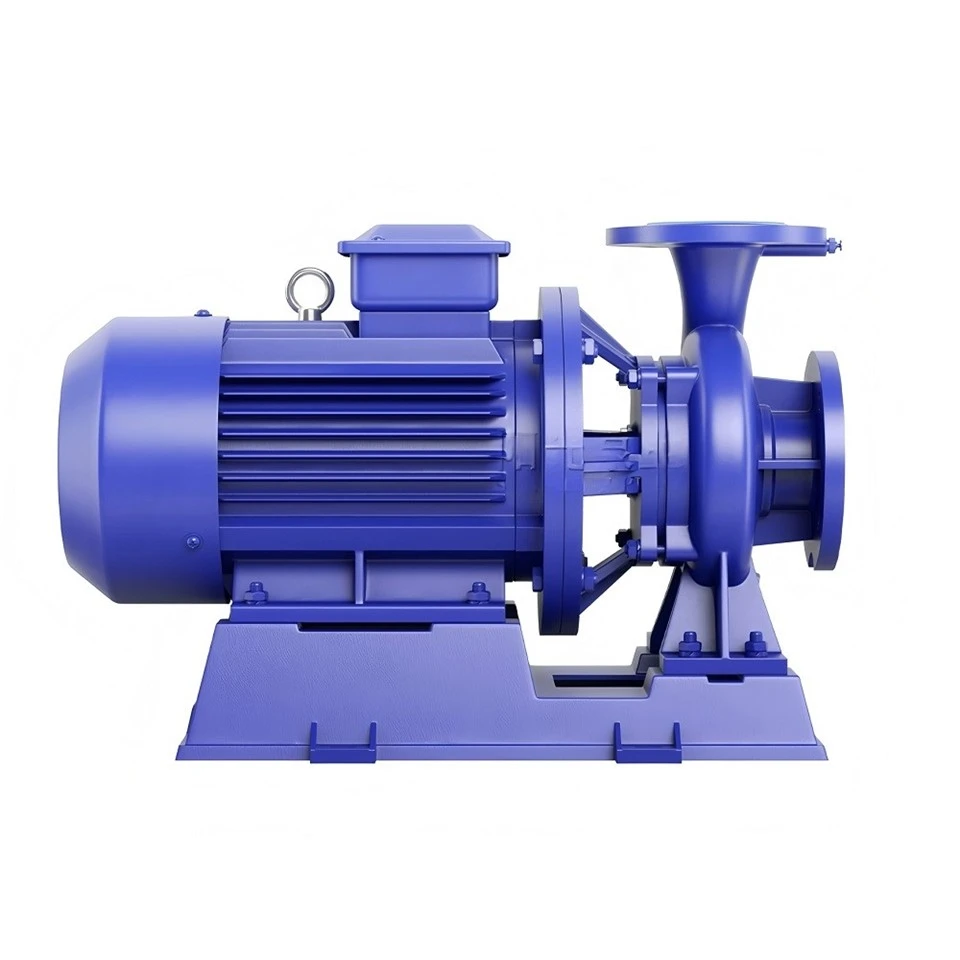

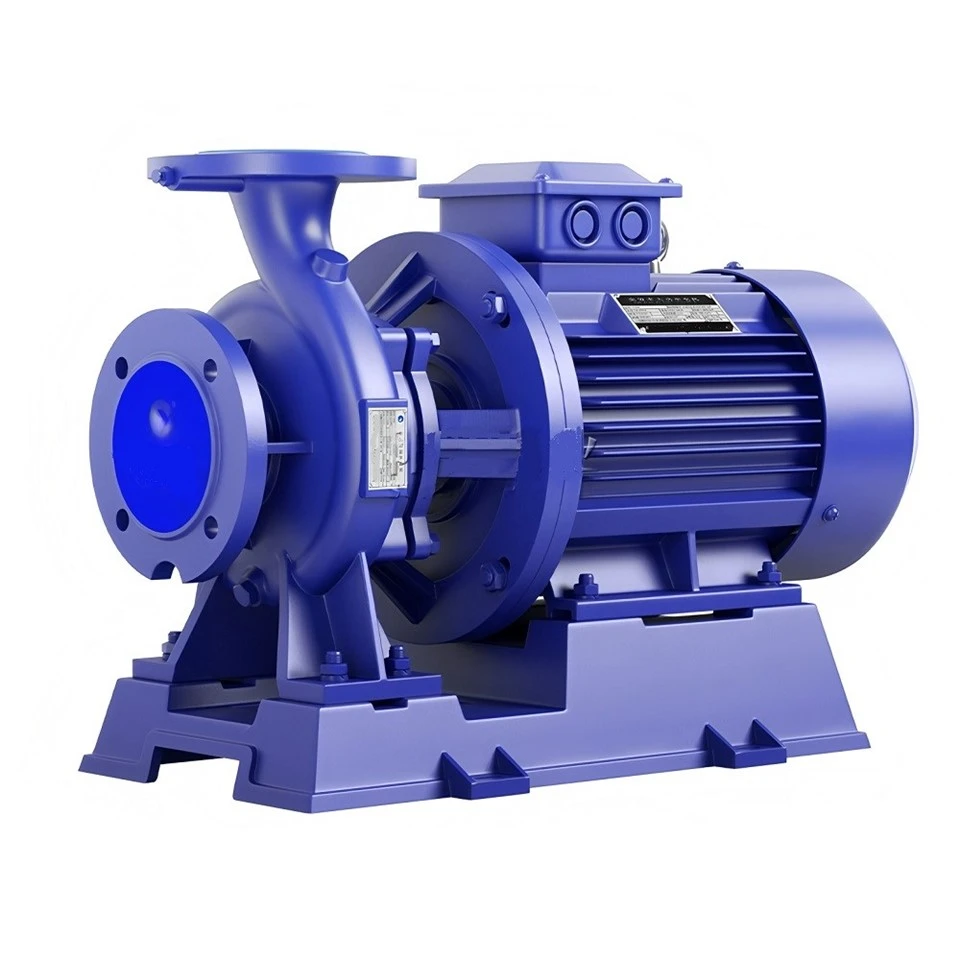

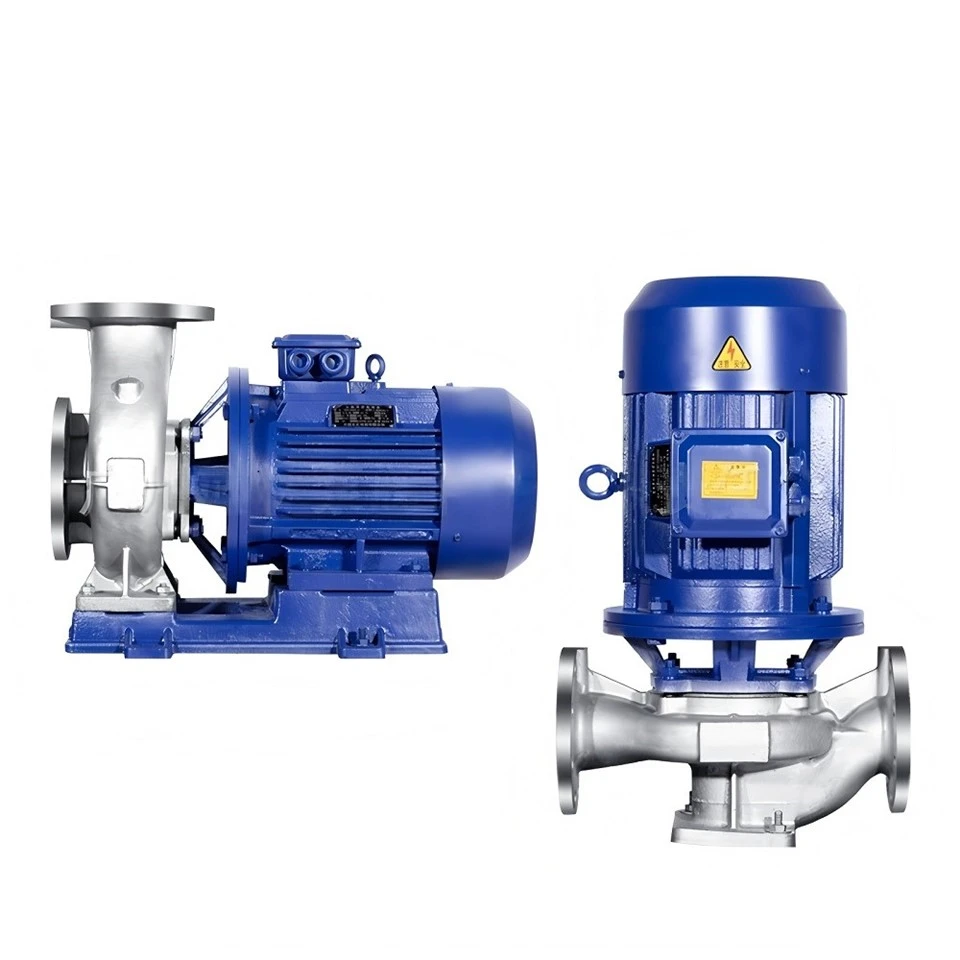

Product display
Product Feature and advantages
1. Steady running: the Horizontal pipeline pump bearings share exactly the same axle and the impeller has excellent static and dynamic equilibrium. Therefore, the pump can work stably, no vibration.
2. No water leakage: hard alloy seal with different material ensures that different liquids can be delivered without leakage.
3. low noise: supported by two low noise bearings, the pump can run stably with almost no noise except a slight sound of motor.
4. Low failure rate: simple and reasonable structure, the key parts are made of material with international first-class quality. The whole machine is trouble free. Its working efficiency is greatly improved.
5. easy maintenance: it is easy to replace seal and bearing.
6. Taking little space: the outlet has three optional directions: to left, to right and upward, which makes it convenient to lay out and install pipelines, saving space.
Product application
The Horizontal pipeline pump is perfectly suitable for all industrial pipeline pump applications:
1. The ISW series Horizontal pipeline pump, used in delivery of clear water and other liquids with similar physical and chemical properties as water. It can be applied for industrial and city supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, pressurizing water for fire fighting, long distance water delivery, HVAC refrigeration cycle, bathroom water supply and other hot and cold water circulation and pressurization. The temperature T<80℃.
2. ISWR horizontal hot water pump is widely used in metallurgy, chemical industry, textile, paper making, hotel and other situations that needs to pressurize and recycle and deliver high temperature water from boiler. It is also suitable for water circulation in heating system for warmth in the city. ISWR type operating temperature≤120℃.
3. ISWH horizontal chemical industry pump delivers corrosive liquids as sticky as water but contains no solid particles. It can be applied to petroleum oil industry, chemical industry, metallurgy, power station, paper making plant, food and pharmaceutical and synthetic fiber business, etc. Operating temperature –20℃~+120℃.
4. ISWB horizontal pipeline oil pump is used in delivery of petrol, paraffin, diesel and other petroleum products or inflammable, explosive liquids; the temperature of the liquids being pumped shall be –20℃~+120℃.
5. ISWD horizontal low speed pump suits for situations where low noise is strictly required. Working temperature T≤120℃.
