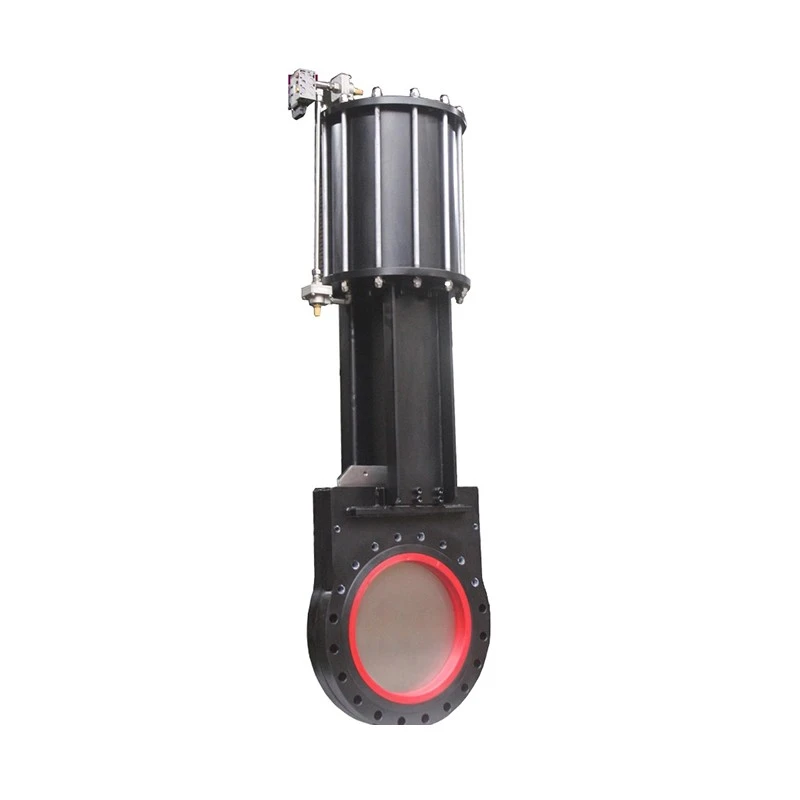

Bidirectional knife gate valve
The bidirectional knife gate valves have a cast steel or stainless steel body, which is produced in conformity with the relevant product norms and in conformity with EN ISO 9001 quality requirements.
They are available with various seals and, on request, may be manufactured with a square shape.
Those valves are suitable for water plants, pneumatic plants, waste water and purification plants, and for the chemical and food industries.
Furthermore, they are suitable for handling viscous liquids, and liquids with solid parts in suspension.
The seals are available in different materials, for use with the various fluids/service media.
These valves are supplied, as standard, with a rising stem.
On request, they can be fitted with a non-rising stem, as well as with a wide range of actuators and accessories available for this series.
The Bidirectional Knife Gate Valve Special designed Elastomer & gasket provides corrosion and abrasion resistance on the toughest liquid slurry and dry material handling application. High Performance, Bi-Directional Knife Gate Valve provide better value and performance with many standard features not found in other, commodity Knife Edge Gate Valve. Our valves are available in different combination of Body, Seat & Gate material.
A wide variety of material options are available on gate, body & seal (elastomer) etc. our Knife Edge Gate Valves are full port design for greater flow capacity and minimal pressure drop.
Product Introduction：
Size Range:DN50~1200mm NPS 2"-48"
Pressure Rating： 0.6Mpa~2.5Mpa,ASME Class150
DN50~DN250: 10Bar NPS2~NPS10：150Psi
DN300~DN450: 7Bar NPS12~NPS18：90Psi
DN500~DN600: 4Bar NPS20~NPS24：60Psi
DN700~DN1200:2bar
Temp. Range：-20...+170℃
Seal Tightness：According to MSS SP-81
Body Material：Cast Iron,Stainless Steel, Duplex, Hastelloy, and Titanium ,others
Gate Material:Stainless Steel Chrome Plated, Special Allory
Seat Material:EPDM (120°C) /Viton(200°C) /NBR(90°C)
Face to Face: MSS SP-81
Flange Standard:GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1
Applications:Pulp & Paper, Water Treatment,Beverage & Food,Fine Chemical, Power Planet,Steel Industry, etc.
Features of Bi directional Self sealing Knife Gate Valve:
Bi-directional design
Resilient seat
Wafer type cast iron body
Self-cleaning mechanism
Non-rising stem standard, rising stem optional
Plate yoke standard
Key Features
1. Full Port Flow Design: - Full port design for greater flow capacity, minimum pressure drop & eliminates turbulence.
2. No Internal Cavities: - Sleeve design is eliminates internal seat cavities. Gate banding, failure of valve & many problems occur due to seal cavity.
3. Eliminate Gland Packing: - Sleeves are seals against each other so no required any Gland packing.
4. No Contact between Valve & Slurry: - Sleeve design completely isolated the valve housing & Gaskets cover the other open metal surface from the slurry flow.
5. Bi-Directional: - Due to double sleeves design valve is sealed against line pressure in either direction.
6. Less maintenance cost: - As compared others gate valve our valve have not wearing parts. Only elastomer is requiring at the time of maintenance.
7. Gate Lubrication System: - Lubrication seal is provided for continues lubrication of gate plate. Seal is full of silicon based lubricant. Gate is passes through the lubricant seal.
The Bi-directional knife gate valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Wastewater treatment plants
Chemical plants
Food and Beverage
etc.
