Soft Seal Wafer Butterfly Valve

Lines In The Electric Butterfly Valve Is A Butterfly Valve And The Institutions Supporting ODL Series Actuators And The Input Control Signals (4 ~ 20 Ma, Or 1 ~ 5 VDC) And One-Way Power Can Control Operation, Electric Butterfly Valve Has The Features Of Strong, Small Size, Light And Pleasant,

Form A Complete Set Of Reliable Performance, Simple, Large Flow Capacity, Electric Butterfly Valve, Especially Suitable For Medium To Thick, Including Particle And Fiber Properties.

At Present The Electric Adjustment Butterfly Valve Is Widely Used In Food, Environmental Protection, Light Industry, Petroleum, Paper Making, Chemical Industry, Teaching And Scientific Research Equipment, Electric Power Industries Such As Industrial Automatic Control System.

About electric soft seal wafer butterfly valve

1, Small And Light, Easy Disassembling And Maintenance, And Can Be Installed In Any Position.

2, Simple And Compact Structure, Small Operation Torque, 90 – Degree Rotating Open Quickly.

3, Flow Characteristic Is Straight Line. Excellent Regulation Performance.

4, Be Used Between The Butterfly Plate And The Valve Stem Structure Without Pin, Overcome The Possible Leak Point.

5, Seal Can Be Replaced, And Reliable Sealing Achieve Two-Way Sealing.

6, The Butterfly Plate Can Spray Coating According To User Requirements, Such As Nylon Or Poly Chloride Class Four.

7, Soft Seal Butterfly Valve, Both Sides Of The Seal Side Is The Metal Material, On The Other Side Is Elastic Non-Metallic Materials Known As "Soft Seal". This Seal Sealing Performance Is Good, But Not High Temperature Resistant, Easy To Wear And Poor Machinery. Such As: Steel + Rubber; Steel + 4 Gas Polyethylene, Etc.

Electric Soft Sealing Butterfly Valve To The Clamp As An Important Actuator In Industrial Automation Control System, Remote Centralized Control Can Meet The Needs Of The Computer Program; Now In Petrochemical Industry, Gas Equipment, Nuclear Industry, Electric Power Equipment, Environmental Protection, Water Treatment, Hvac, Iron And Steel Metallurgy, Industrial Furnace, Canned Equipment, Brewing Equipment, Drying Equipment, Vacuum Equipment, Surface Treatment, Biological, Pharmaceutical, Food Machinery, Textile Printing And Dyeing, Papermaking And Other Industries Widely Used, Also Is The Construction Of National Defense Construction, Science And Technology The Preferred Products.

Material Provide : CF8, CF8M, CF3, CF3M, , CF8C, Stainless Steel ,Carbon Steel ,Cast Steel

Pressure Rating: (PN10 To PN 40)

Standards Applied: API. ASME, ANSI, NACE, CE/ EN, DIN, JIS, BS, ISO, TS, GB, Etc.

Operative Temperature: -50 °C To 500 °C

Option Operation:electric Operate ,Pneumatic Operate ,Manufacture Operate ,Gearbox

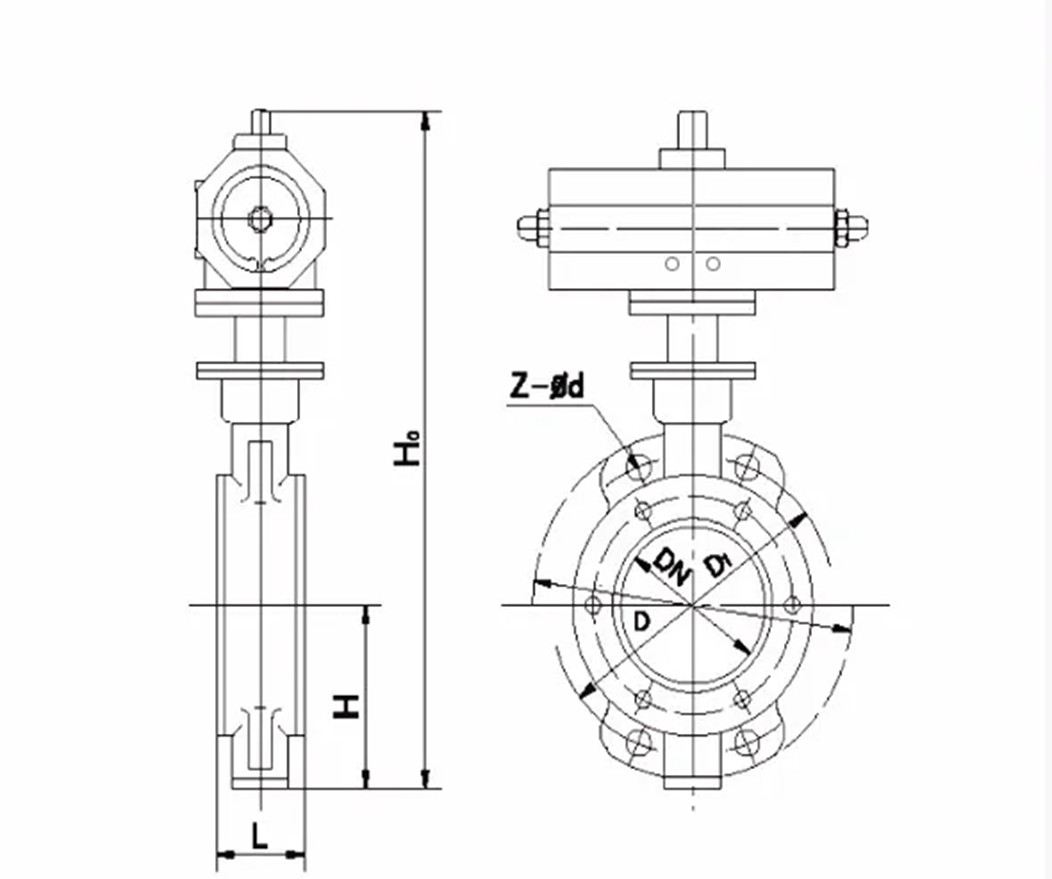

Electric soft seal butterfly valve connecting dimension

The electric soft seal butterfly valve is characterized by simple structure, small volume, light weight. The butterfly valve is full open or closed when the disc is rotated a quarter turn with good flow control characteristic. It's very small pressure from the disc when the butterfly valve is in full open position. They are widely used in water supply, fire protection, air condition, environmental protection, food, light industry, electrical, petroleum, papermaking and so on.
